Performance Features:

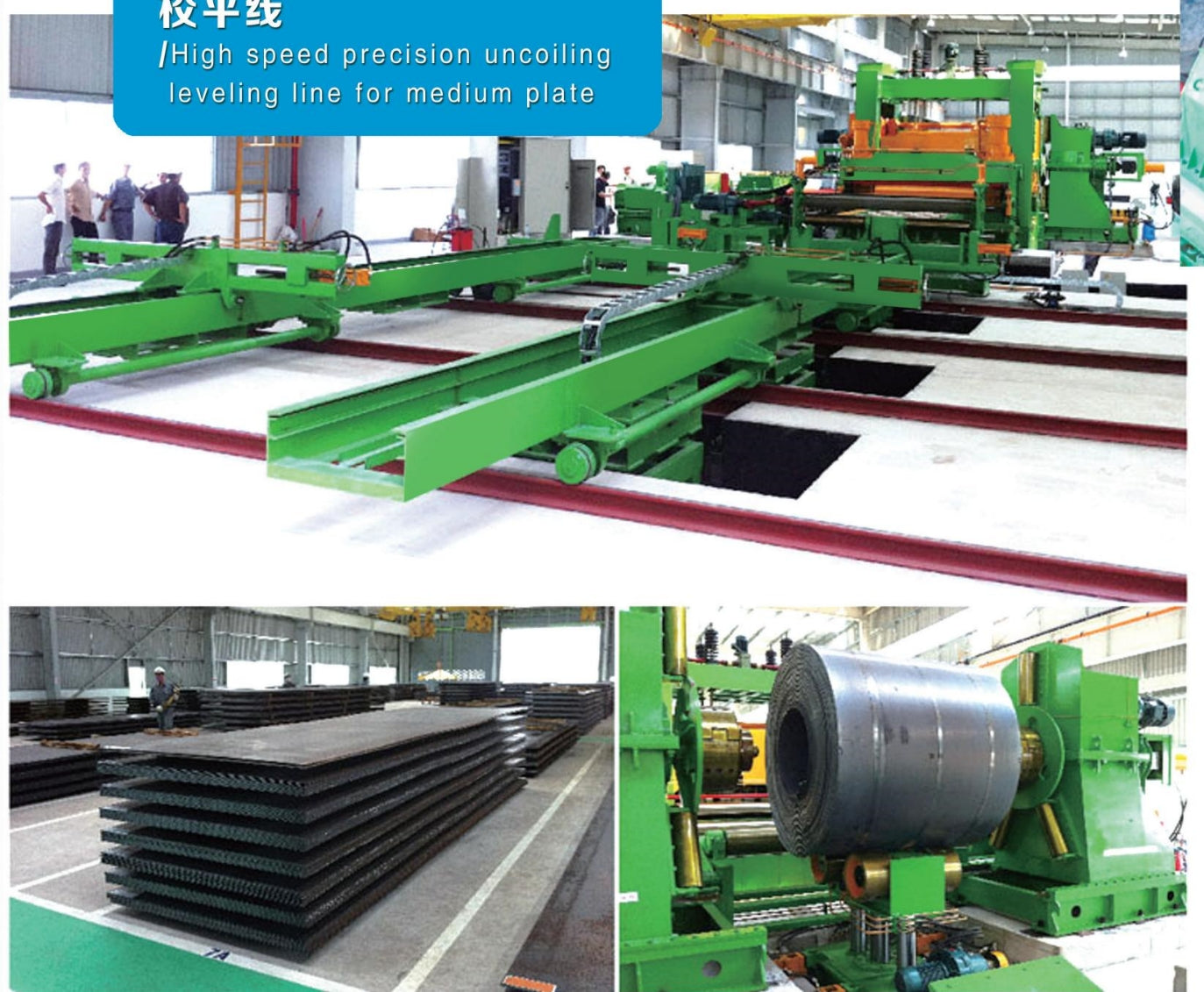

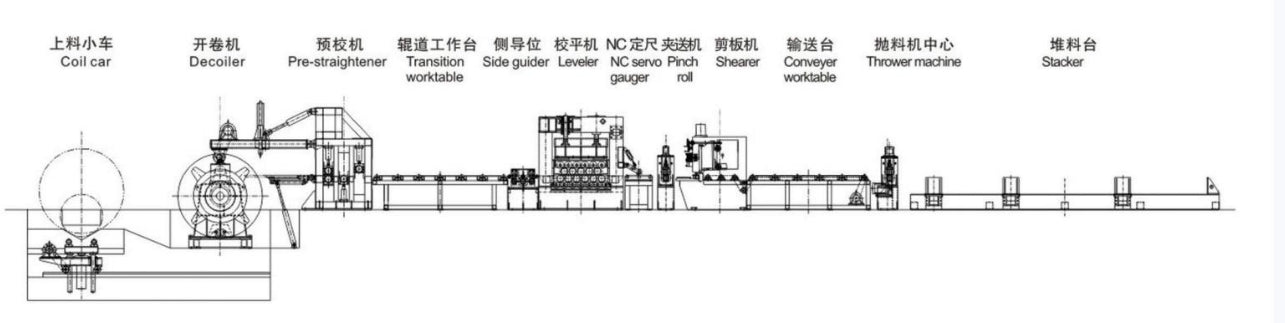

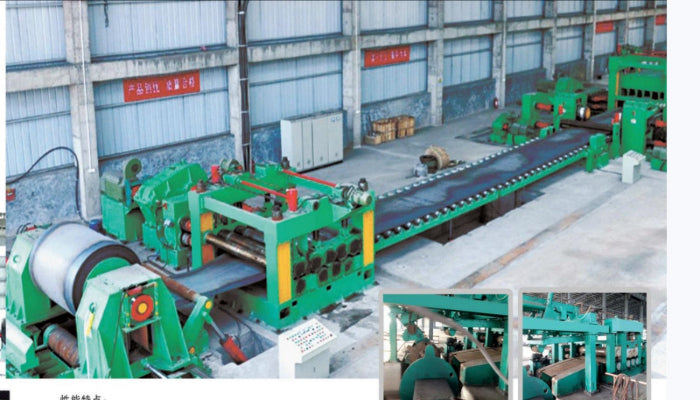

The medium-thick hot-rolled plate numerical control low-speed uncoiler, leveling, and shearing production line is capable of performing uncoiling, leveling, cutting to length, transverse shearing, and stacking operations. It primarily consists of a feeding trolley, uncoiler, main leveling unit, limit devices, encoder-controlled length measurement, plate cutting machine, conveying workbench, pneumatic discharge rack, unloading workbench, hydraulic system, and electrical control system. This production line is designed to uncoil, level, and shear various types of coils—including cold-rolled steel coils, galvanized coils, and stainless steel coils—into boards of specified lengths.

The production line is controlled by a PLC numerical control system. The cutting-to-length process is regulated by an encoder that measures the length. Information such as length, the number of cuts, and speed can be input into the PLC system via a touchscreen human-machine interface. When the required number of cuts is reached, the production line automatically stops.

The production line’s speed is adjustable. It features high measurement accuracy, fully automated operation throughout the entire line, and simple operation.
The production line for the plate upgrade begins with the leveling production line models. Steel has introduced a thickness
more excellent board to increase broader coil products. To adapt its Kaiping， the company specifically designed to produce a range
of products. And adjust the design according to customer demand at any time. Pressure cited the part of large-scale welded
steel and steel plates across the uncoiler， and the folder to send the early school connected four-post frame structure pressure
lead agency， to configure a strong shovel head， hydraulic mobile direct head pressure cited Cots leveling， shearing equipment
.For the larger thickness of the metal coil leveling， slitting. You can get a high-quality four-trimming plate with a double-headed trimming machine edge wire winder configuration.
